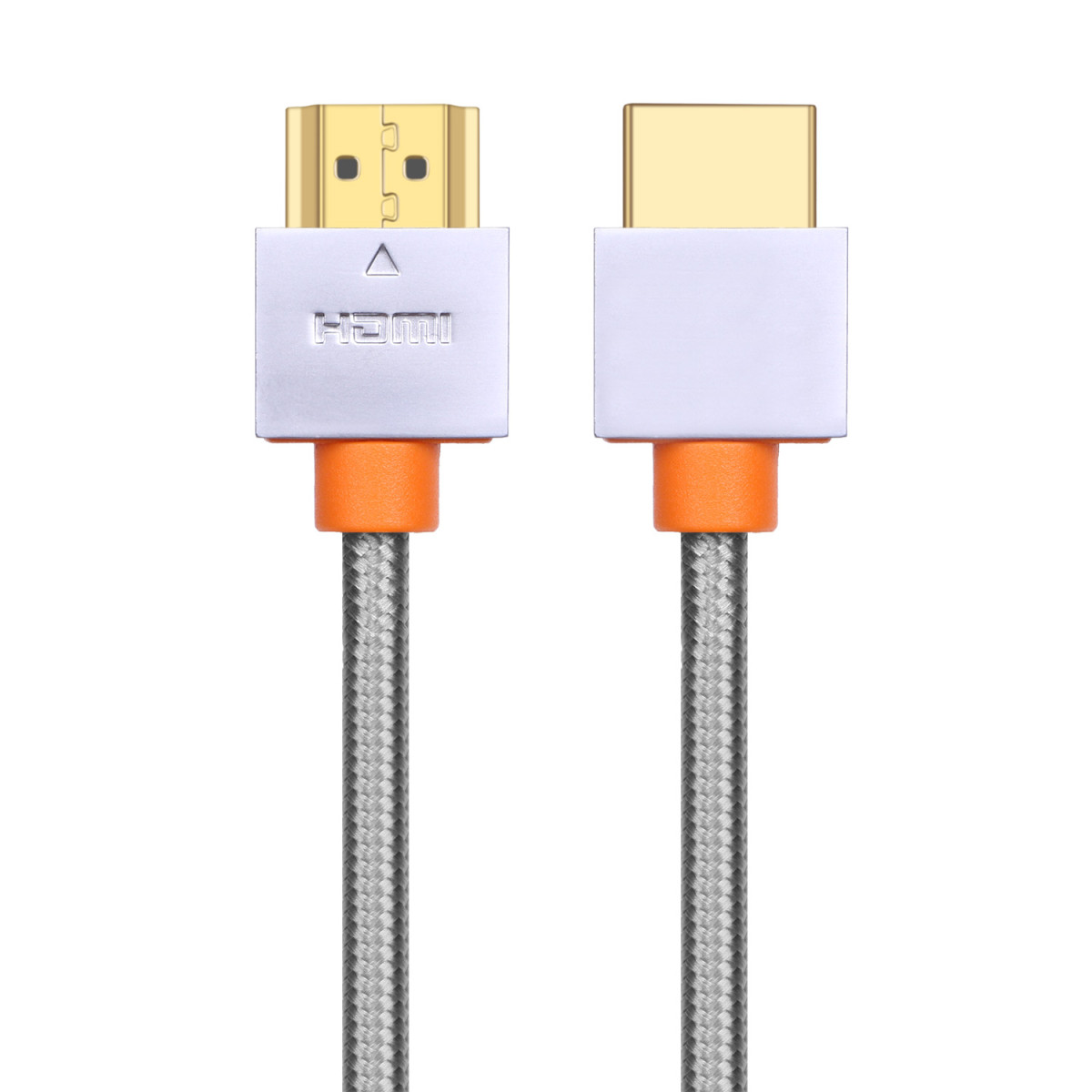

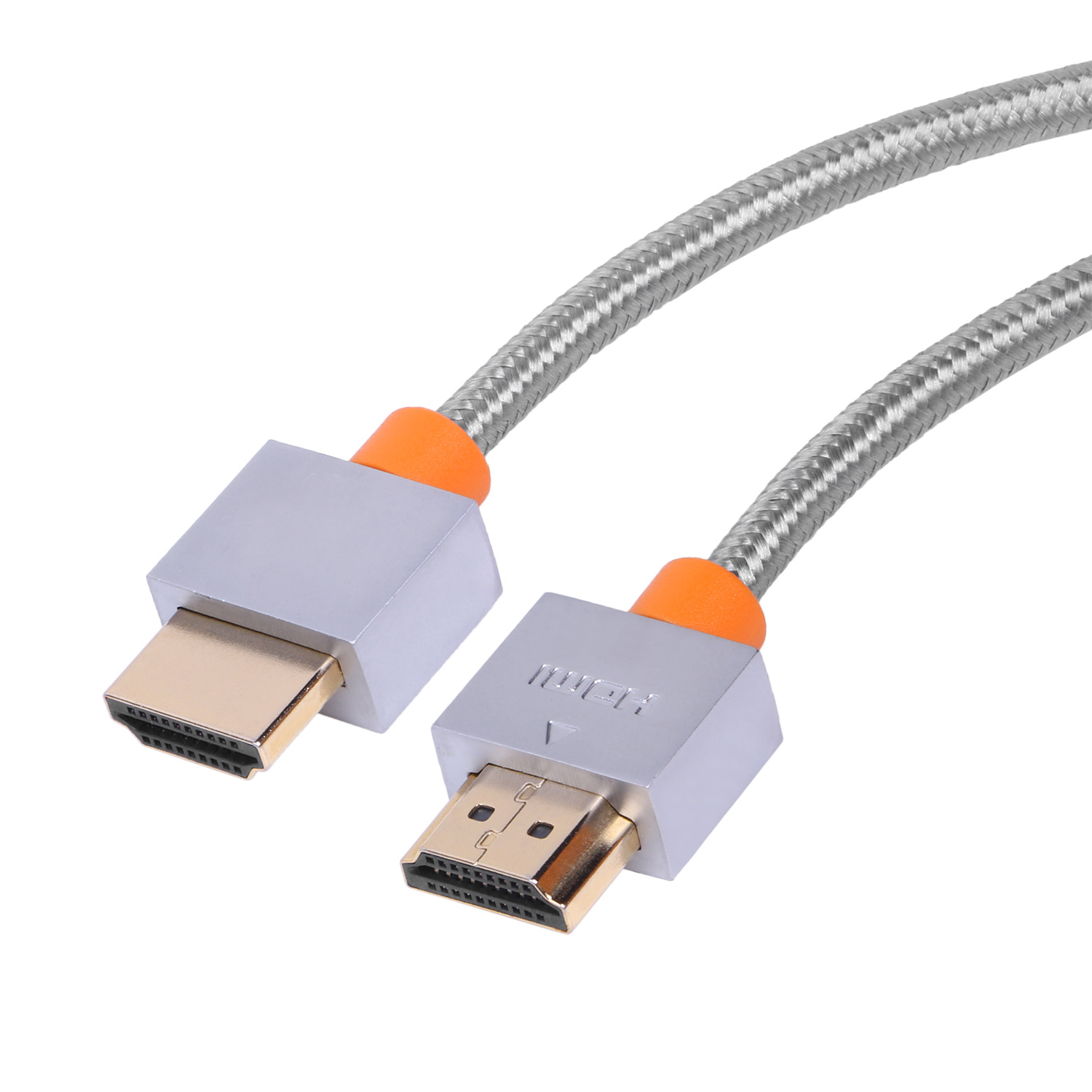

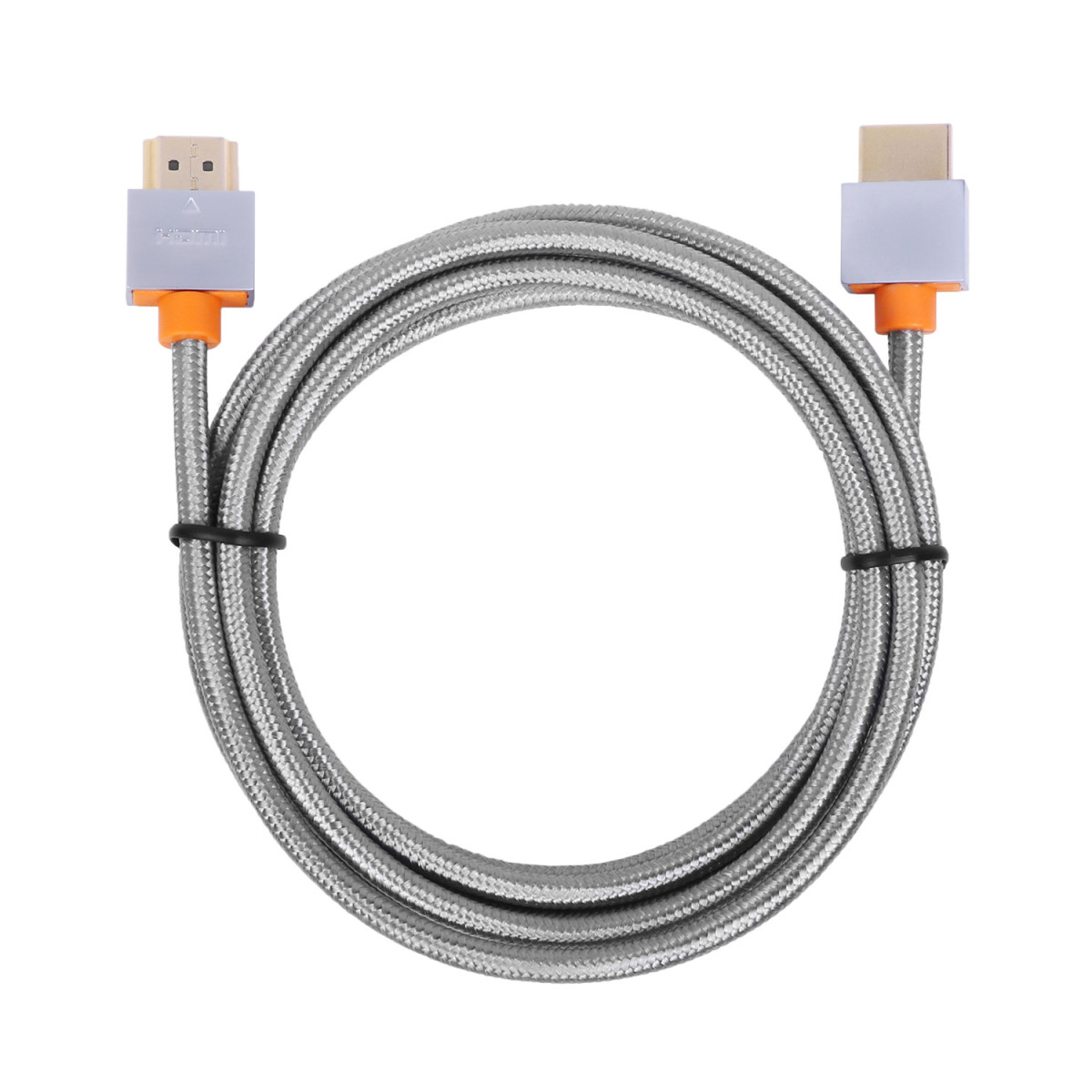

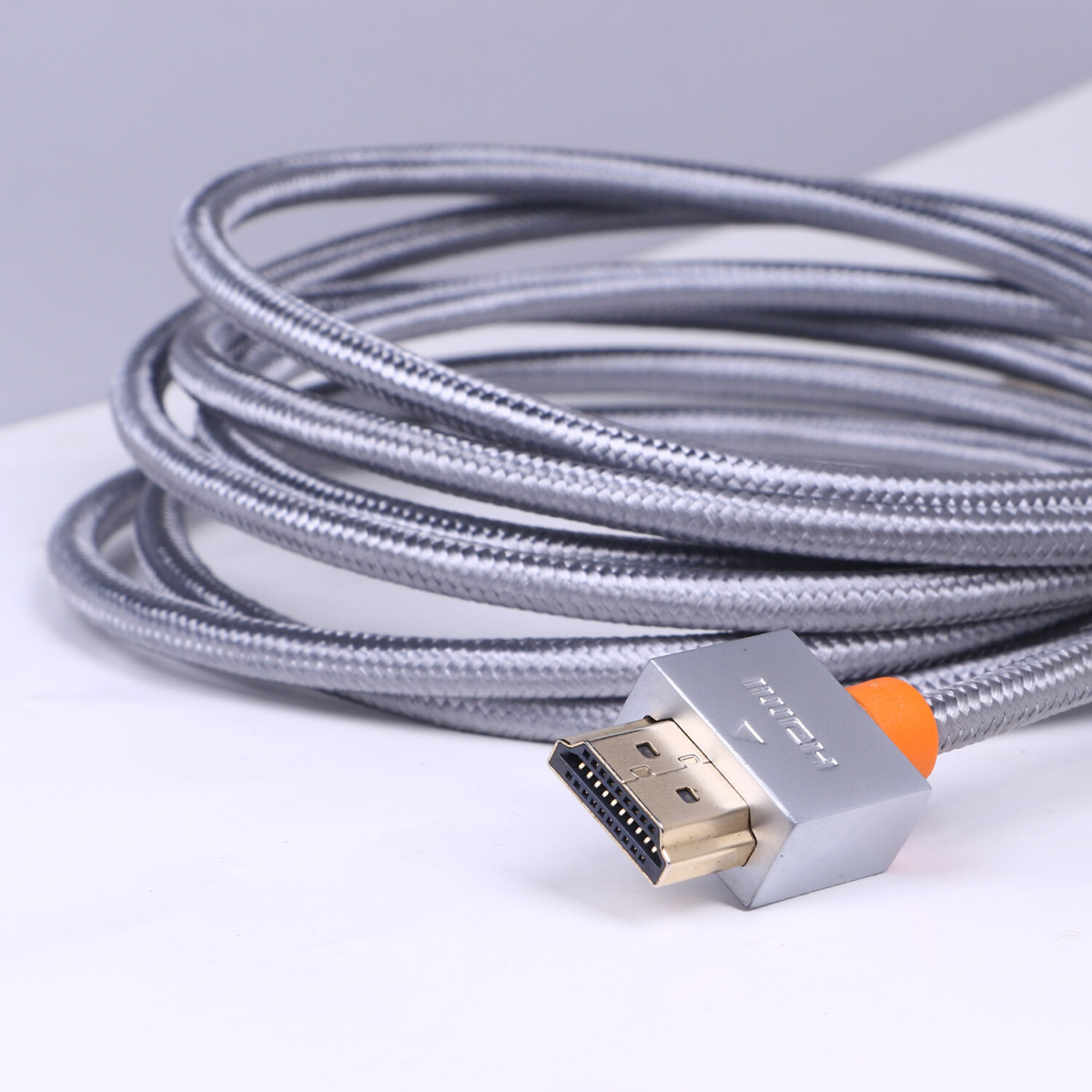

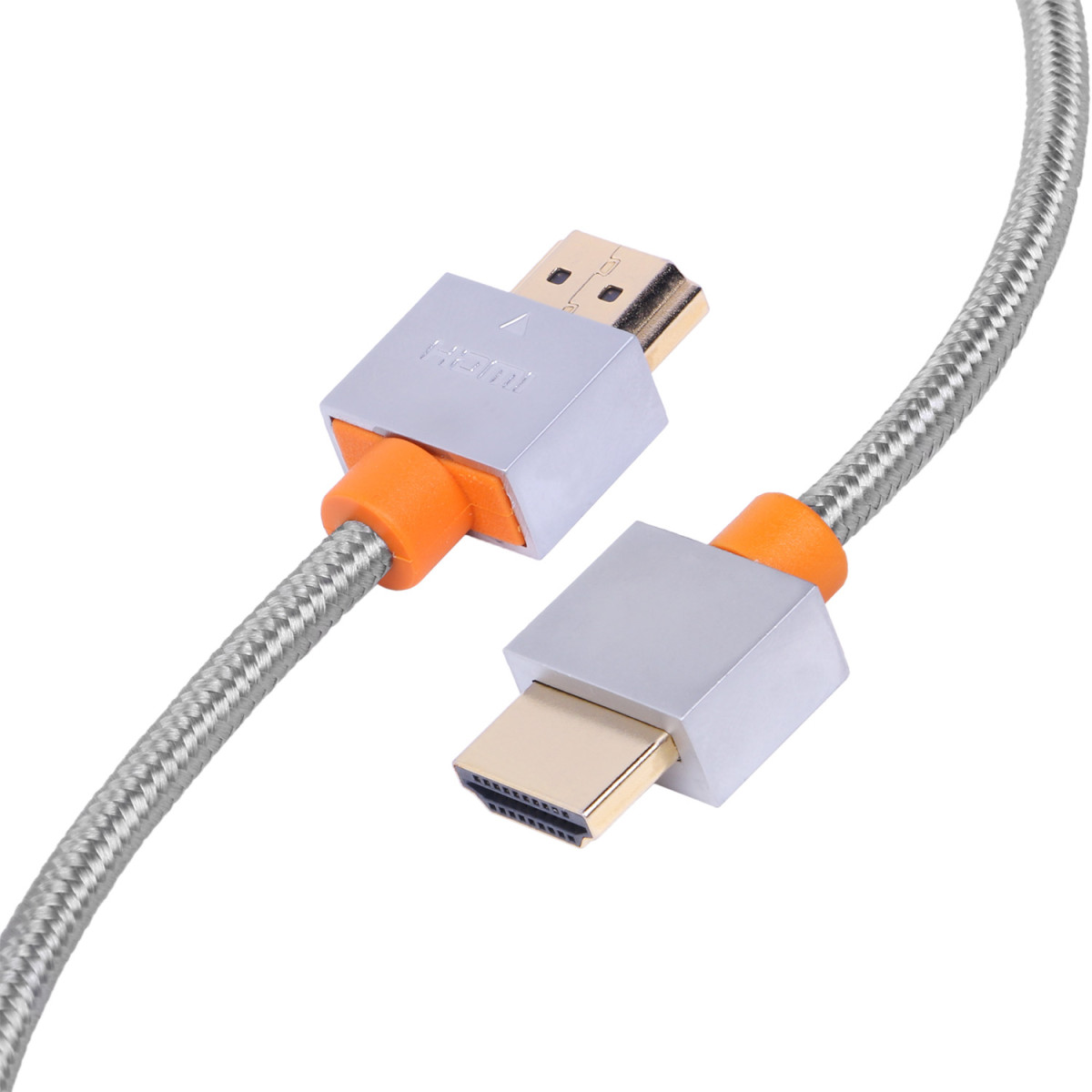

OEM Male to Male Gold Plated HDMI® Cable Support 3D 4K and 2160P 1080P
Specifications : Cables manufacturer
1. HDMI® 19Pin Male to HDMI® 19 Pin Male Cable
2. Connector: 24K gold plated
3. Supports all HDMI® devices
4. Supports resolution up to 2160P
5. Transmission Speed up to 10.2Gbps

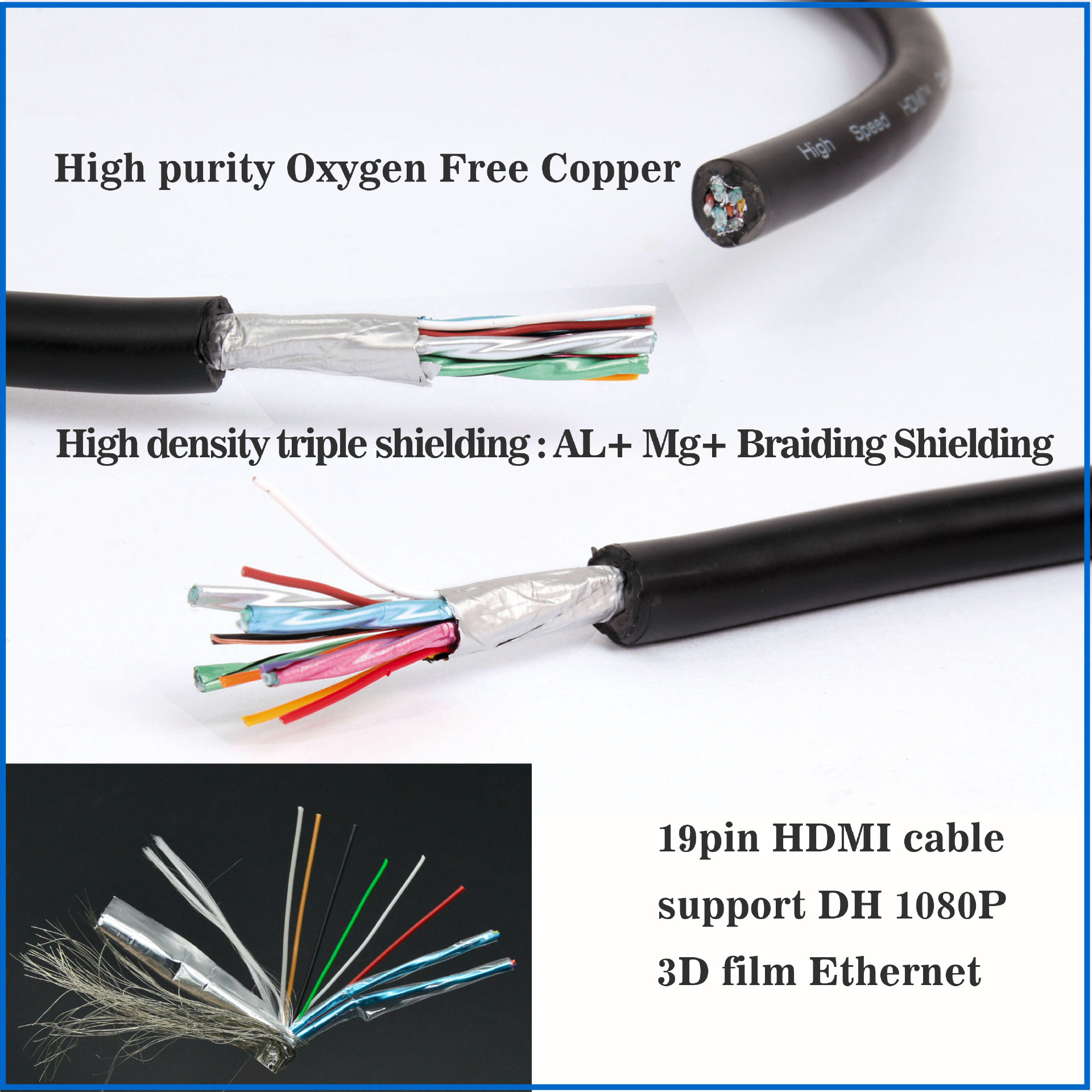

6. All conductor and the shields (braid and drain) are copper
7.Can provide quite long HDMI® cable with amplifying signal without power source
8. We have over 30 models (Molding/Copper/ABS/Zinc different type )are available
9. HDMI® ATC certified
Supports :
1.3D video, resolution up to full HD 1920X1080P, 4K*2K
2. Audio Return Channel & Dual Stream 1080p
3. HDTVs / PS4 / Blu-Ray players / Hometheater / Video projector
4. HDMI® ethernet channelHDMI
Applications:
1. HD-DVD, Blue-ray DVD, LCD TVs, Plasma Display
2. Game Machines: Sony Plays
3. LCD TVs, Plasma Display
4. Rear Projection Microdisplays
5. Hi-def DVD Payers
6. A/V Receivers
7. Digital Television
8. XBOX360 HDMI® Electrical
Features:
1. 100% Open & Short Tests
2.Voltage / Hi-pot: DC 300v 10ms
3. Insulation Resistance: 10m ohm min
4. Contact Resistance: 3max
5. wire:30AWG*1P+D+FAM
6. Differential Impedance(Ω):100±1Ω(TDR)
7.Data transfer rate:10.2Gbps Max
8.Working Temperature: -25C-80C
Electrical:
1. 100% open and short test
2. Conductor resistance: 2 OHMS Max
3. Insulation resistance: 5 MEGOHMS Min
4. HI-POT:DC300v/0.01s
5. HDTV-DVD
Note HDMI® interface size:
HDMI® interface has three kinds: standard ports, mini-port and micro-port Due to volume restrictions, so on different devices, you have to choose different interface
HDMI® line is not as long as possible:
Theoretical single HDMI® cable transmission distance is 7-8 meters, but the actual use, do not need that long ,Before buying, the best measure the desired length, measurements as long as 50cm margin is enough
Avoid excessive bending HDMI® cable:
During use HDMI® cable, to avoid excessive bending wire, such as regular use, there may be damage to the line winding core or shield Generally along an actuate bend, the cable will not be damaged
The terms HDMl, HDMl High-Definition Multimedia interface, HDMl Trade dress and the
HDMl Logos are trademarks or registered trademarks of HDMl Licensing Administrator, inc.
