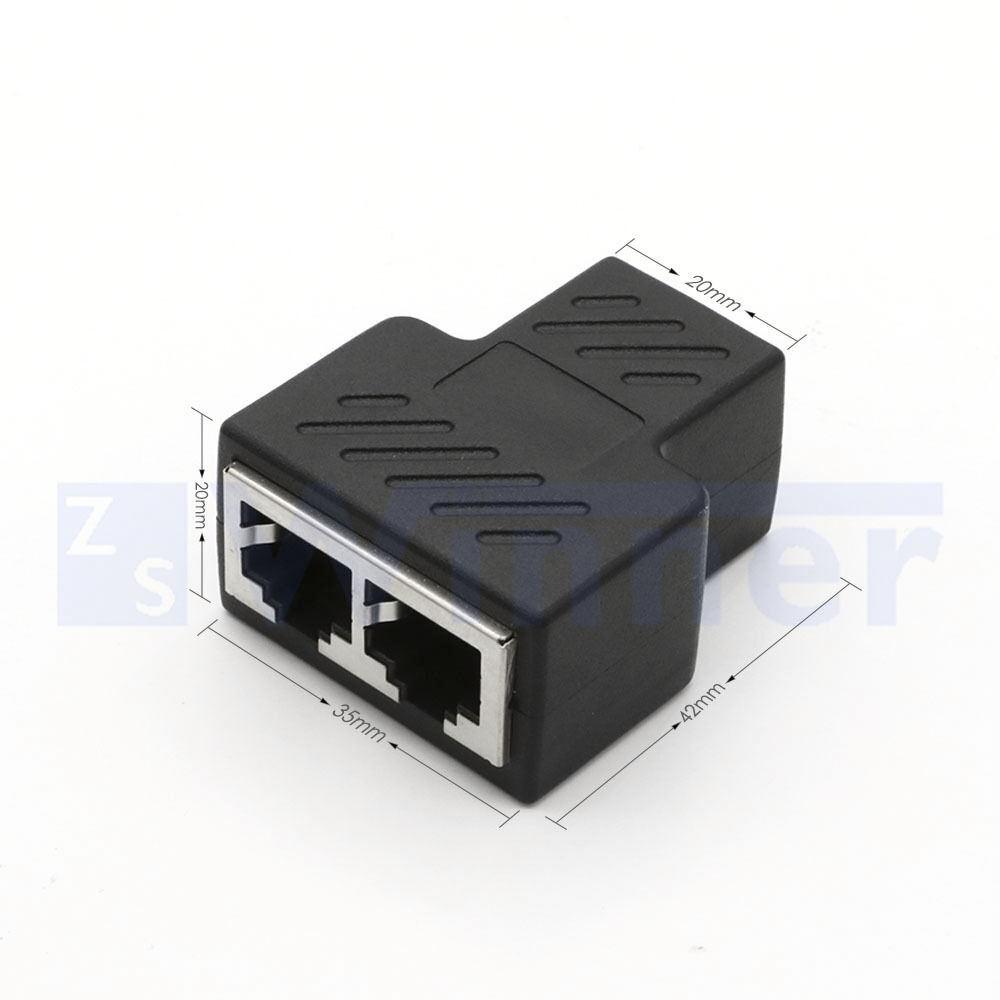

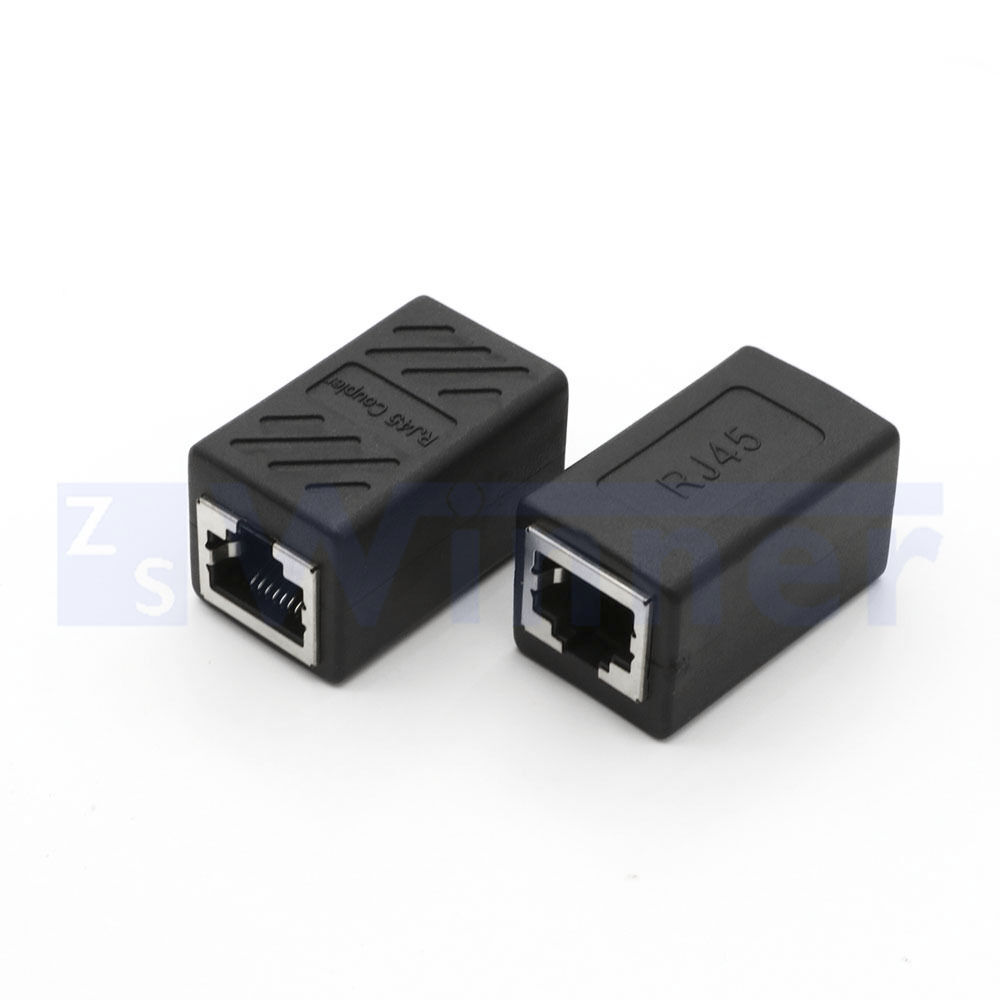

RJ45 Coupler Adapter, RJ45 Socket Adapter Interface Ethernet Cable - Extender Plug LAN Network Connector

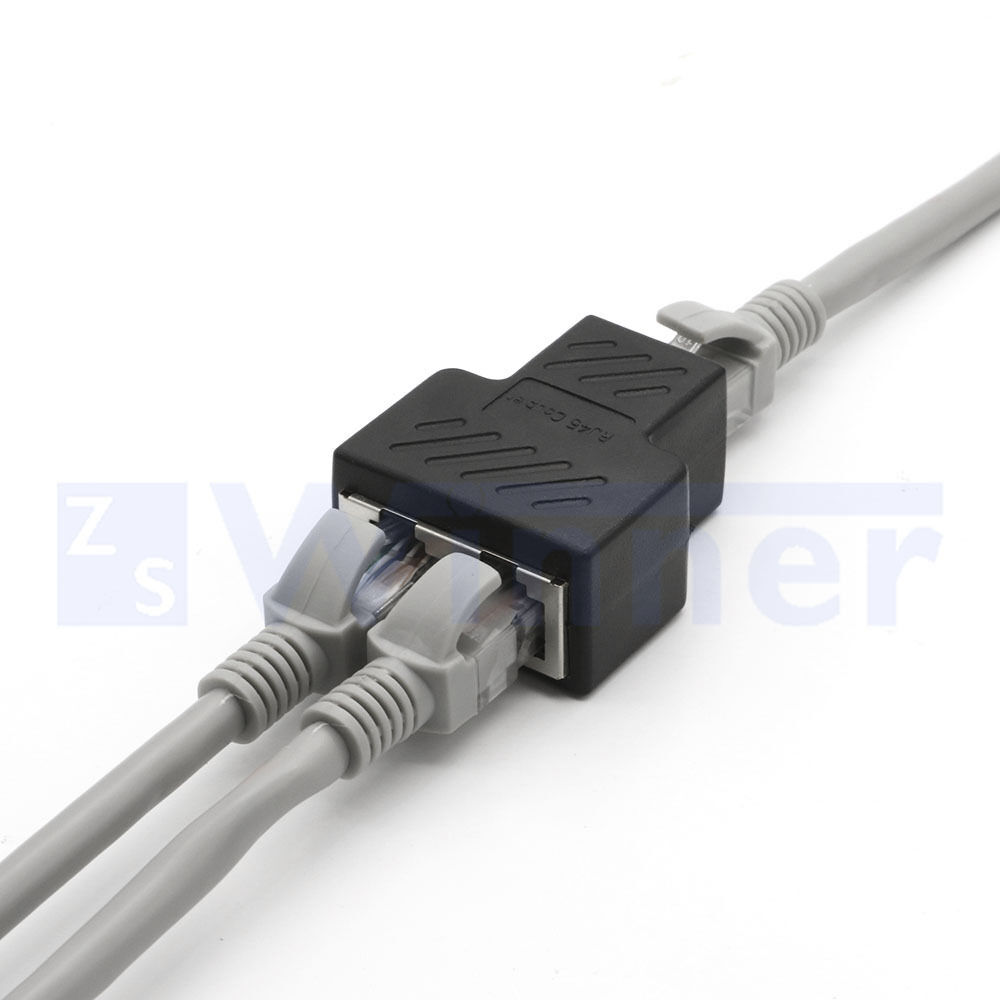

The RJ45 ethernet splitter It can extended you network connect , in two different fixed position often back and forth use ,Different type for you choose !
Fast Speed :
RJ45 coupler adapter extender can speed up to 10 gigabite
Wide Compatibility :
Compatible with Cat7, Cat6 Cat5e, Cat5 network
Easy to Carry :
The shell made of ABS, it is lightweight and small enough to carry
Stable Transmission :
Built-in pure copper gold plated needle, make it more stable transmission and better connection
Safe Connect :
easy snap-in retaining clip to ensure a secure and corrosion free connection , prevent damage to the Internet signal
RJ45 Coupler Adapter Specifications :
Electrical:
Voltage rating: 125V AC/rms
Current rating: 1.5A
Contact-resistance: 100m ohms (maximum)
Insulation-resistance: 1000M ohms (minimum) at 500V DC
Dielectric strength: 750V AC/rms, 60Hz and one minute
Environment:
Storage temperature: -40 to +85°C
Operating temperature: 0 to 70°C
Mechanical:
Housing material: PC UL94V-0
Inner material: flame-retardant ABS UL94V-0
PCB material: FR-4
Thickness: 1.6mm
Contact materials:
phosphor bronze stamp and PIN T=0.35mm
IDC contact materials:
phosphor bronze, T=0.50mm with nickel plating
Feature :
Thicker PCB :
2mm thick PCB board embedded conductive circuit, to avoid damage to the conductor leakage ,Ensure to longer life
Used as an extension :
made of outstanding material with a stable transmission. It can compatible with Cat5, Cat5e, Cat6, Cat7
Wide range of applications :
It can compatible with ADSL, hubs, switch, TV, set-top box, router, wireless device, computer
