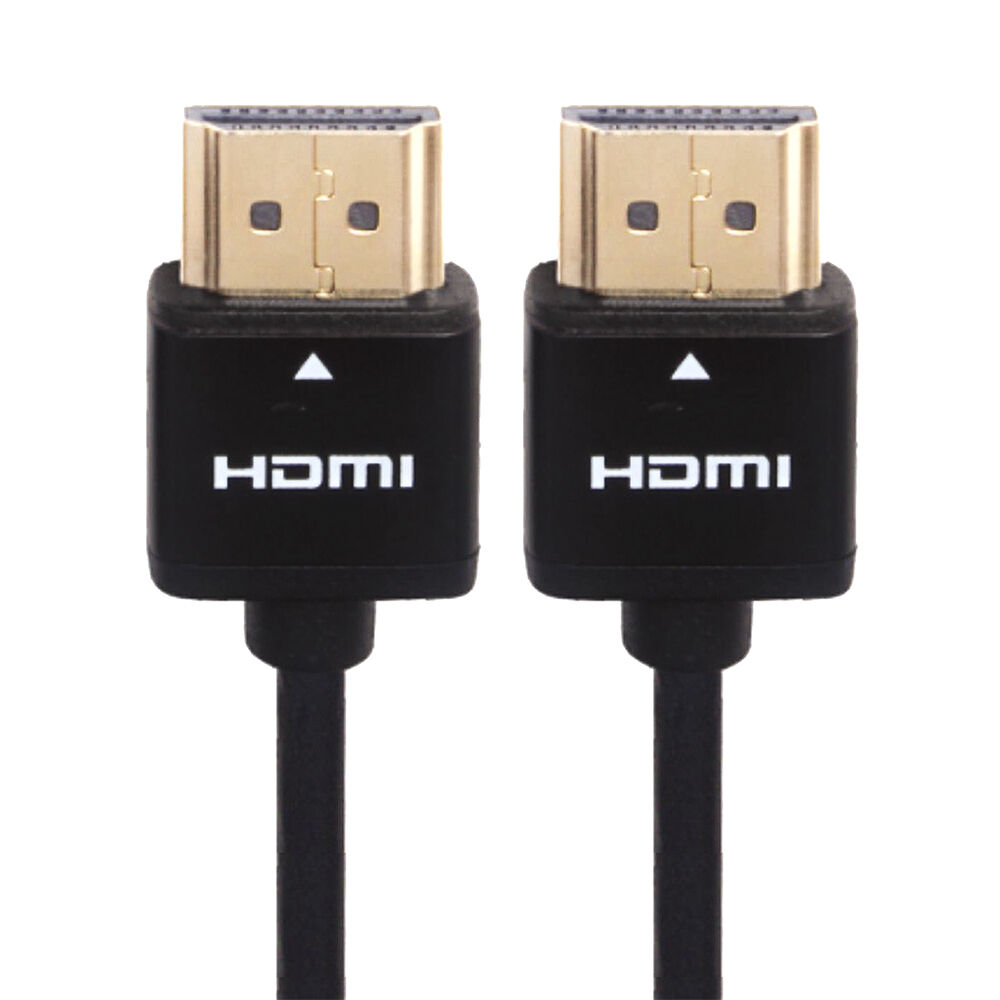

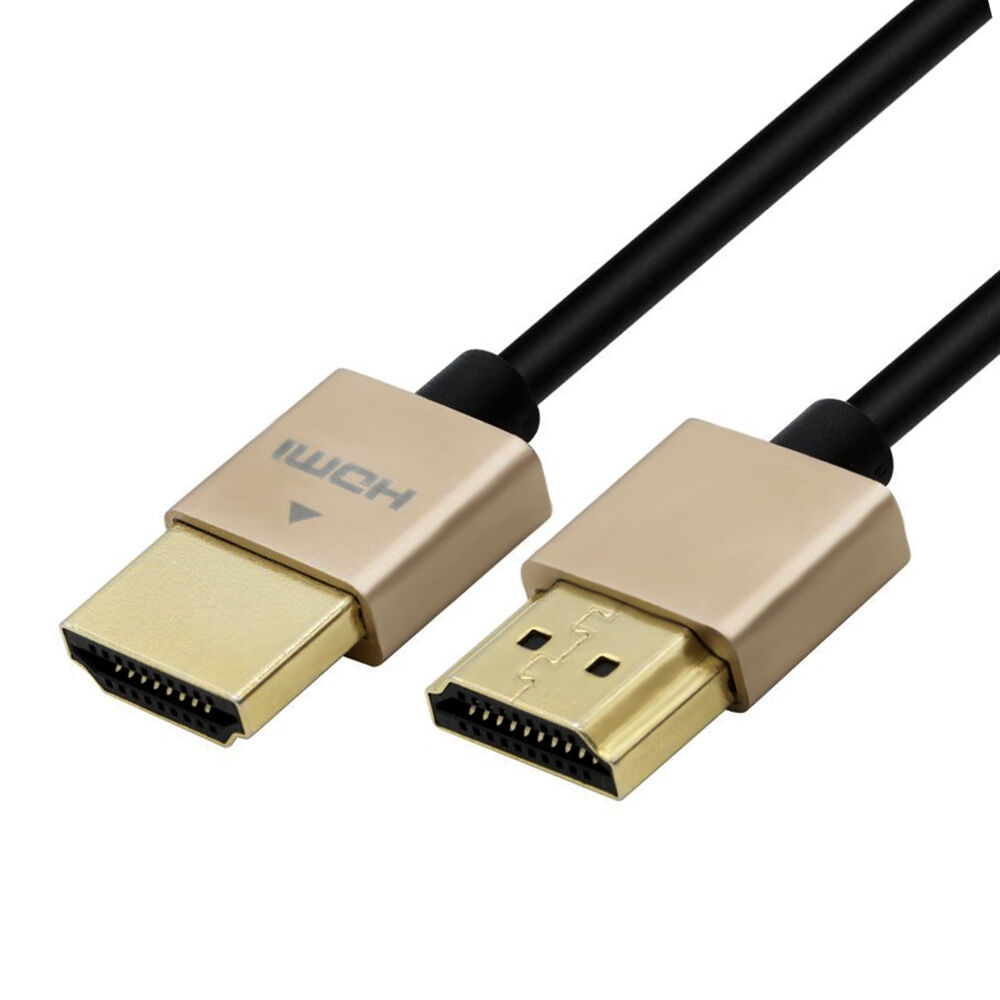

OEM Male to Male Gold Plated HDMI Cable Support 3D 4K and 2160P 1080P made in Vietnam
Send Order Request

Share:


OEM Male to Male Gold Plated HDMI Cable Support 3D 4K and 2160P 1080P


Specifications : Cables  manufacturer


1. HDMI 19Pin Male to HDMI 19 Pin Male Cable

2. Connector: 24K gold plated

3. Supports all HDMI devices

4. Supports resolution up to 2160P

5. Transmission Speed up to 10.2Gbps

6. All conductor and the shields (braid and drain) are copper

7.Can provide quite long HDMI cable with amplifying signal without power source

8. We have over 30 models (Molding/Copper/ABS/Zinc different type )are available

9. HDMI ATC certified


Supports :

1.3D video, resolution up to full HD 1920X1080P, 4K*2K

2. Audio Return Channel & Dual Stream 1080p

3. HDTVs / PS4 / Blu-Ray players / Hometheater / Video projector

4. HDMI ethernet channelHDMI


Applications:

1. HD-DVD, Blue-ray DVD, LCD TVs, Plasma Display

2. Game Machines: Sony Plays

3. LCD TVs, Plasma Display

4. Rear Projection Microdisplays

5. Hi-def DVD Payers

6. A/V Receivers

7. Digital Television

8. XBOX360 HDMI Electrical


Features:

1. 100% Open & Short Tests

2.Voltage / Hi-pot: DC 300v 10ms

3. Insulation Resistance: 10m ohm min

4. Contact Resistance: 3max

5. wire:30AWG*1P+D+FAM

6. Differential Impedance(Ω):100±1Ω(TDR)

7.Data transfer rate:10.2Gbps Max

8.Working Temperature: -25C-80C


Electrical:

 1. 100% open and short test

2. Conductor resistance: 2 OHMS Max

3. Insulation resistance: 5 MEGOHMS Min

4. HI-POT:DC300v/0.01s

5. HDTV-DVD

201808095b6baae806493.jpg201808095b6baaf30c9c4.jpg201808095b6baadf24abf.jpg201808095b6bab92c255c.jpg

Note HDMI interface size:

HDMI interface has three kinds: standard ports, mini-port and micro-port Due to volume restrictions, so on different devices, you have to choose different interface


HDMI line is not as long as possible:

Theoretical single HDMI cable transmission distance is 7-8 meters, but the actual use, do not need that long ,Before buying, the best measure the desired length, measurements as long as 50cm margin is enough


Avoid excessive bending HDMI cable:

During use HDMI cable, to avoid excessive bending wire, such as regular use, there may be damage to the line winding core or shield Generally along an actuate bend, the cable will not be damaged
