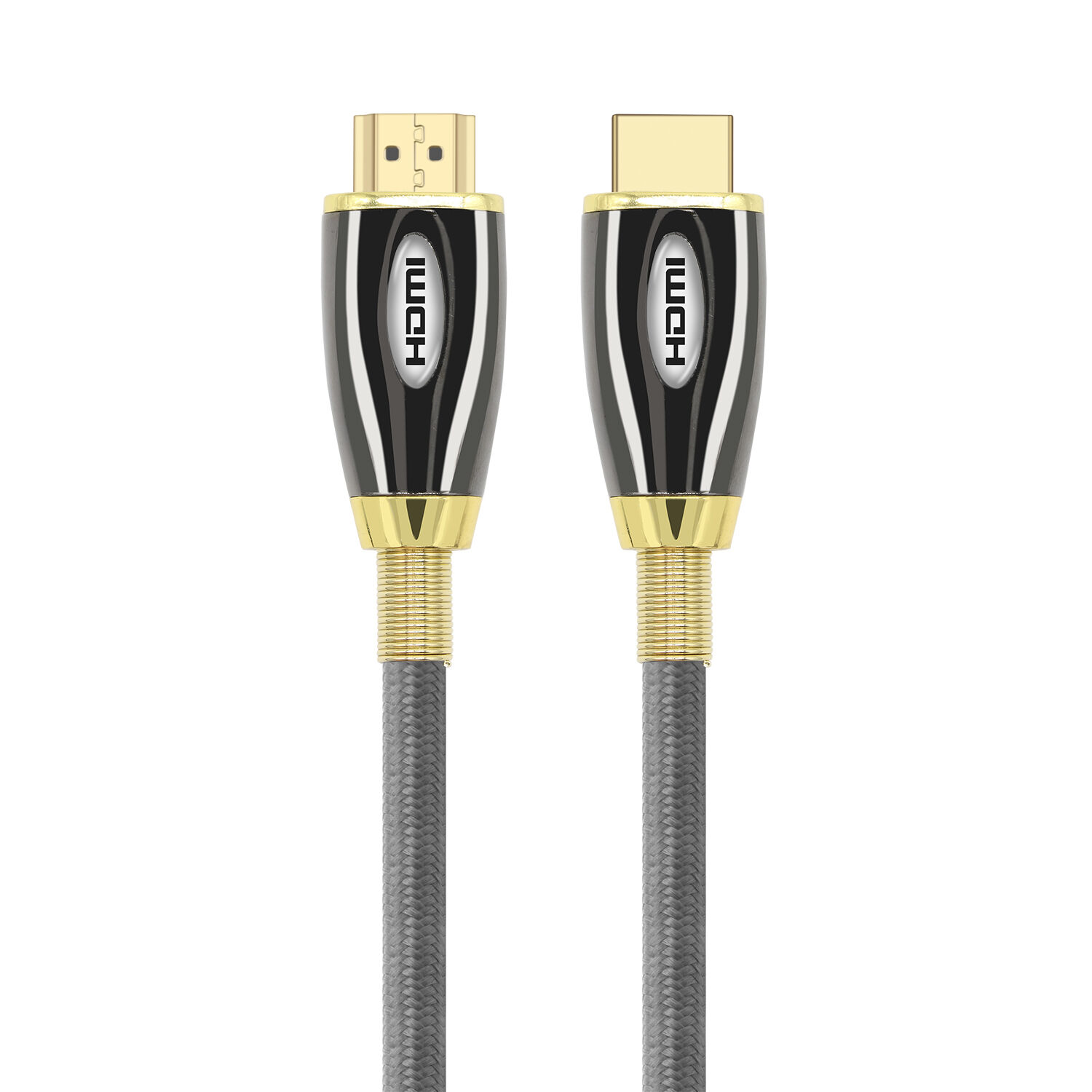

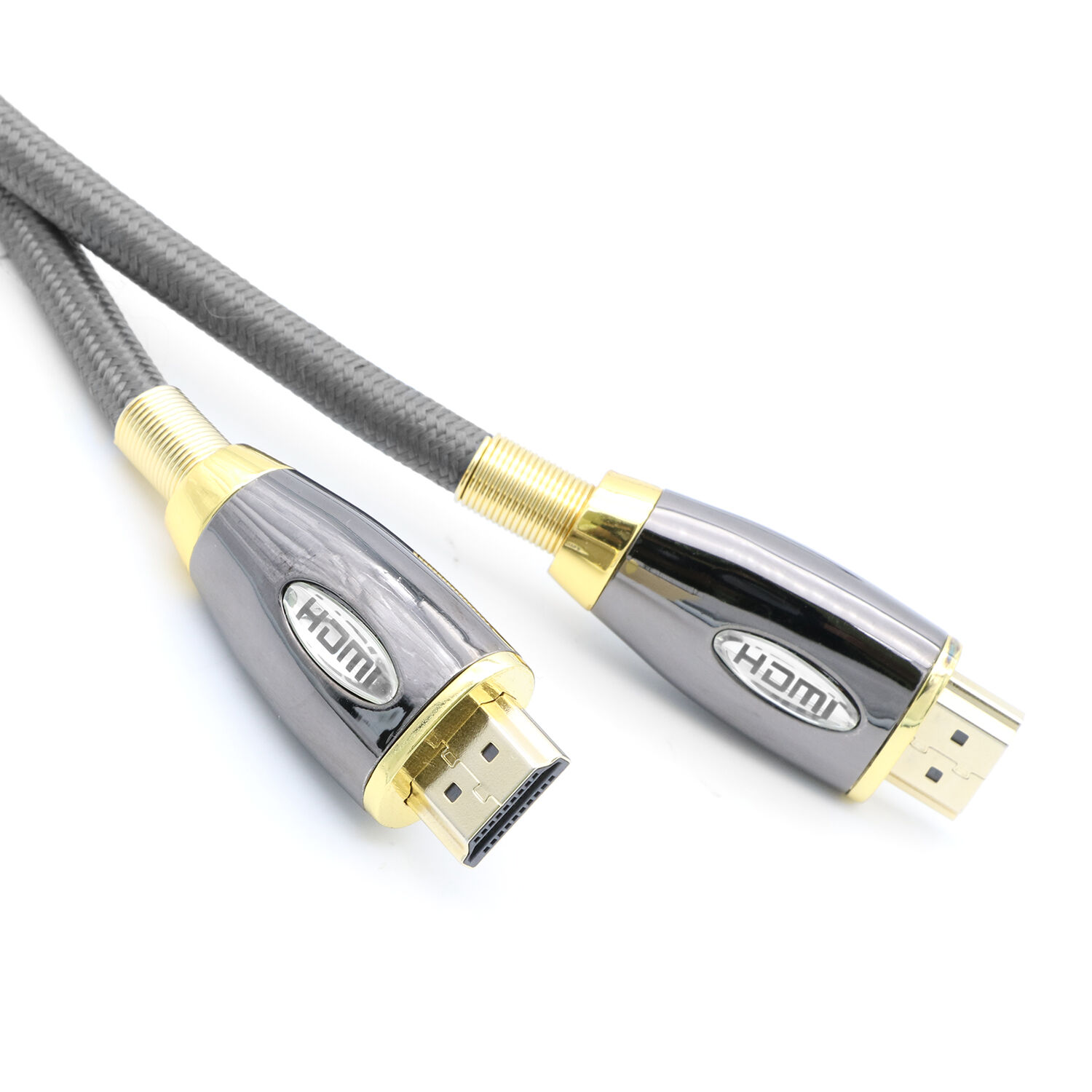

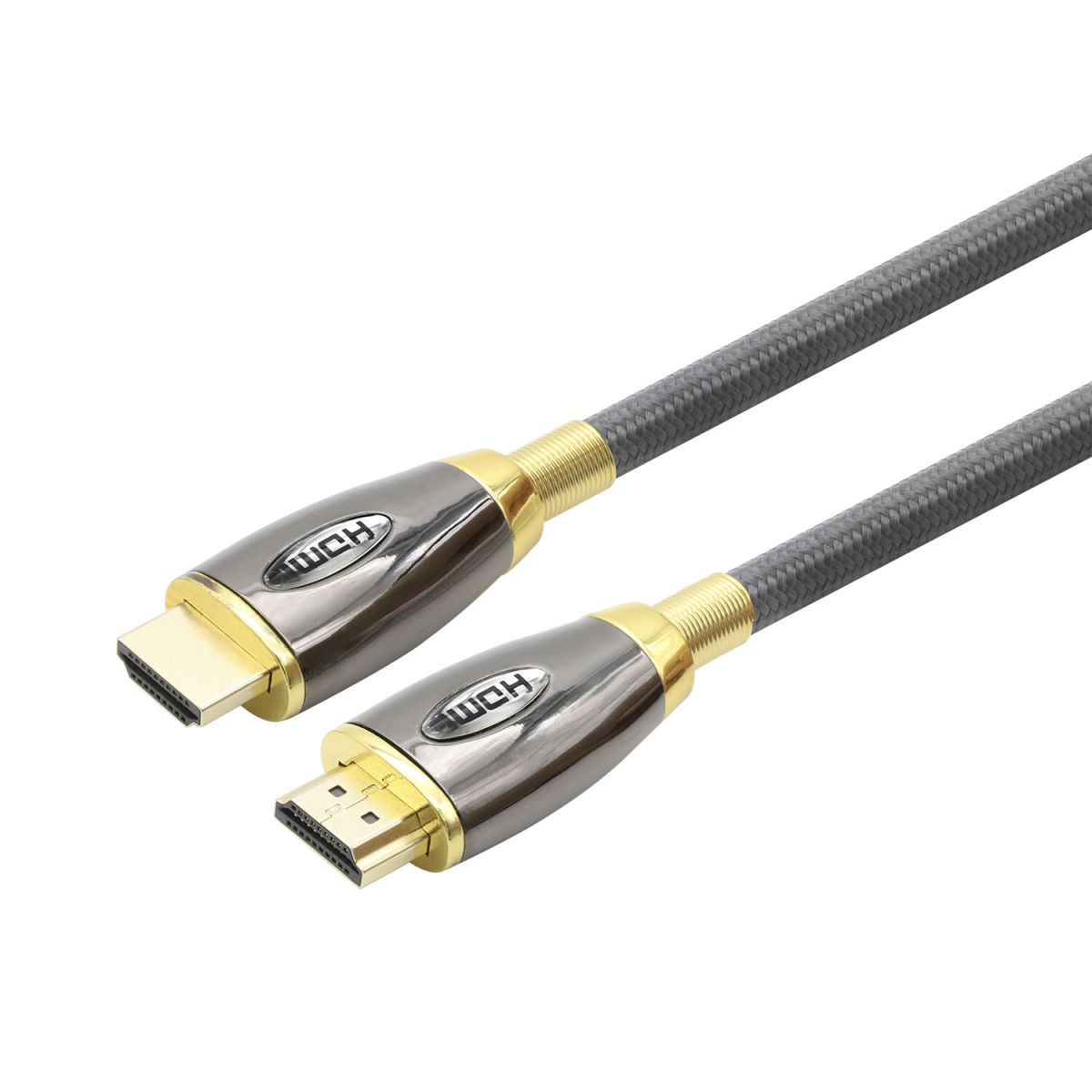

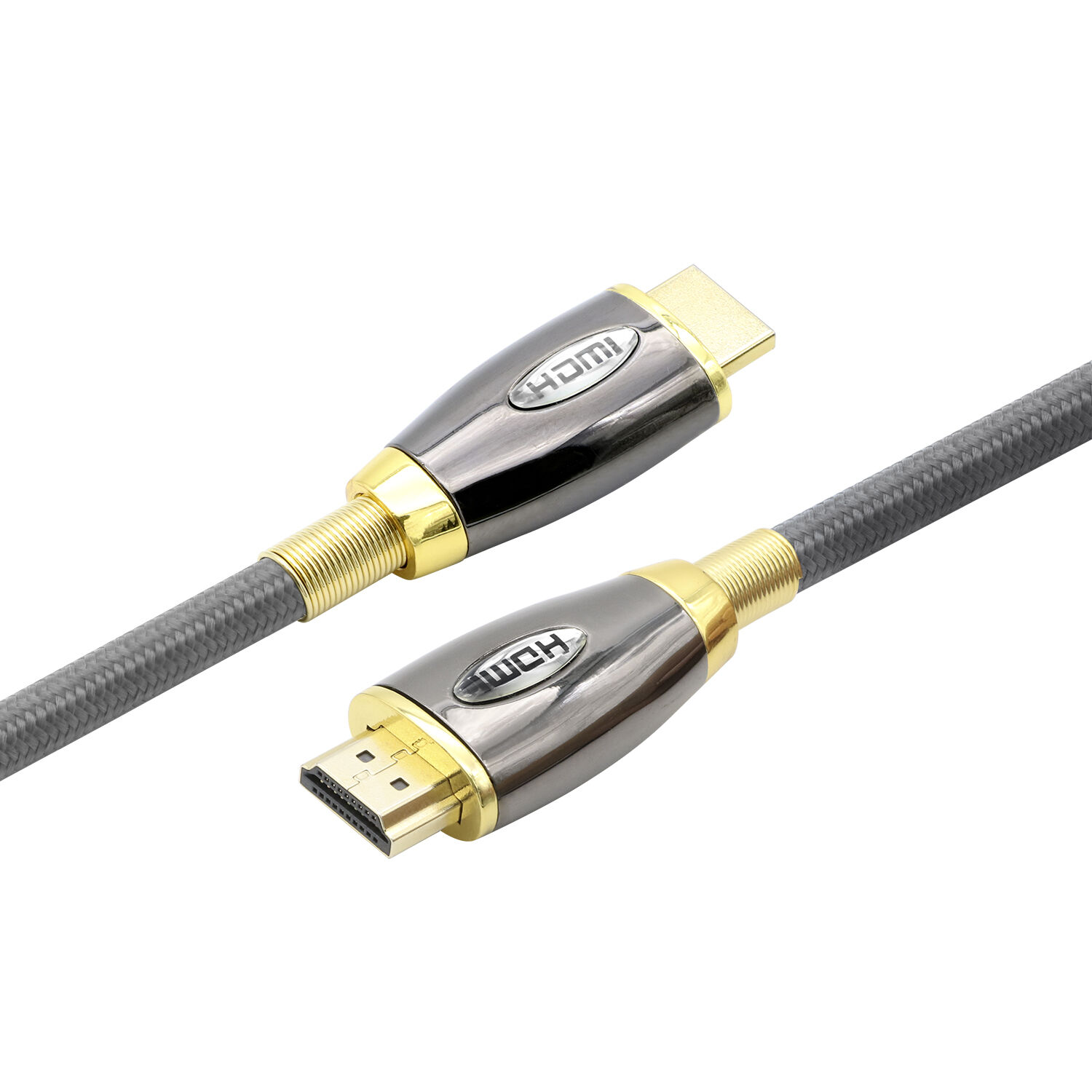

Zinc Alloy shell high Speed HDMI® Cable 2 meter 4:4:4 4k@60hz with Ethernet for TV made in Vietnam
Send Order Request

Share:

ZHONGSHAN-WINNER-ELECTRONIC-TECHNOLOGY-CO-LTD20210





High Speed HDMI® male to HDMI® male cable 2m 5m for PS5 RTX3080 3090


Specifications :

1. HDMI® 19Pin Male to HDMI® 19 Pin Male Cable

2. Connector: 24K gold plated

3. Supports all HDMI® devices

4. Supports resolution up to 2160P

5. Transmission Speed up to 10.2Gbps

6. All conductor and the shields (braid and drain) are copper

7.Can provide quite long HDMI® cable with amplifying signal without power source

8. We have over 30 models (Molding/Copper/ABS/Zinc different type )are available

9. HDMI® ATC certified


Supports :

1.3D video, resolution up to full HD 1920X1080P, 4K*2K

2.  Audio Return Channel & Dual Stream 1080p

3. HDTVs / PS4 / Blu-Ray players / Hometheater / Video projector

4. HDMI® ethernet channel


HDMI® Applications :

1. HD-DVD, Blue-ray DVD, LCD TVs, Plasma Display

2. Game Machines: Sony Plays

3. LCD TVs, Plasma Display

4. Rear Projection Microdisplays

5. Hi-def DVD Payers

6. A/V Receivers

7. Digital Television

8. XBOX 360


HDMI® Electrical Features:

1. 100% Open & Short Tests

2.Voltage / Hi-pot: DC 300v 10ms

3. Insulation Resistance: 10m ohm min

4. Contact Resistance: 3max

5. Wire:30AWG*1P+D+FAM

6. Differential Impedance(Ω):100±1Ω(TDR)

7.Data transfer rate:10.2Gbps Max

8.Working Temperature: -25C-80C


Note HDMI® interface size:

 "HDMI® interface has three kinds: standard ports, mini-port and micro-port Due to volume restrictions, so on different devices, you have to choose different interface"



HDMI® line is not as long as possible:

 "Theoretical single HDMI® cable transmission distance is 7-8 meters, but the actual use, do not need that long ,Before buying, the best measure the desired length, measurements as long as 50cm margin is enough"

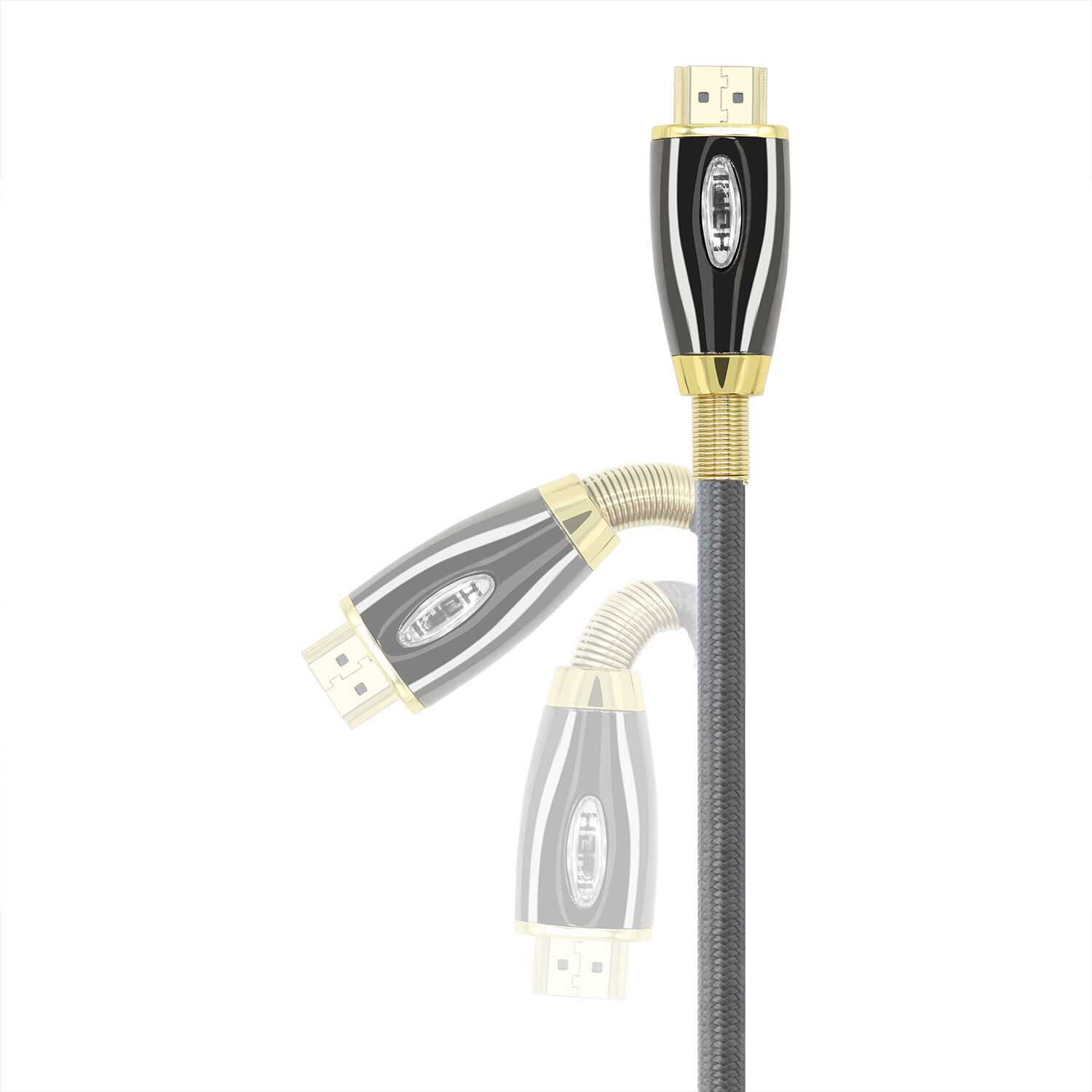

Avoid excessive bending HDMI® cable:

 "During use HDMI® cable, to avoid excessive bending wire, such as regular use, there may be damage to the line winding core or shield Generally along an actuate bend, the cable will not be damaged "


The terms HDMl, HDMl High-Definition Multimedia interface, HDMl Trade dress and the

HDMl Logos are trademarks or registered trademarks of HDMl Licensing Administrator, inc.


 About us:

 Winner has specialized in designing, developing, manufacturing and marketing variety of Audio and Video and smartphone Accessories . If you have any problems, please feel free to contact us, it's our pleasure to work for you !
