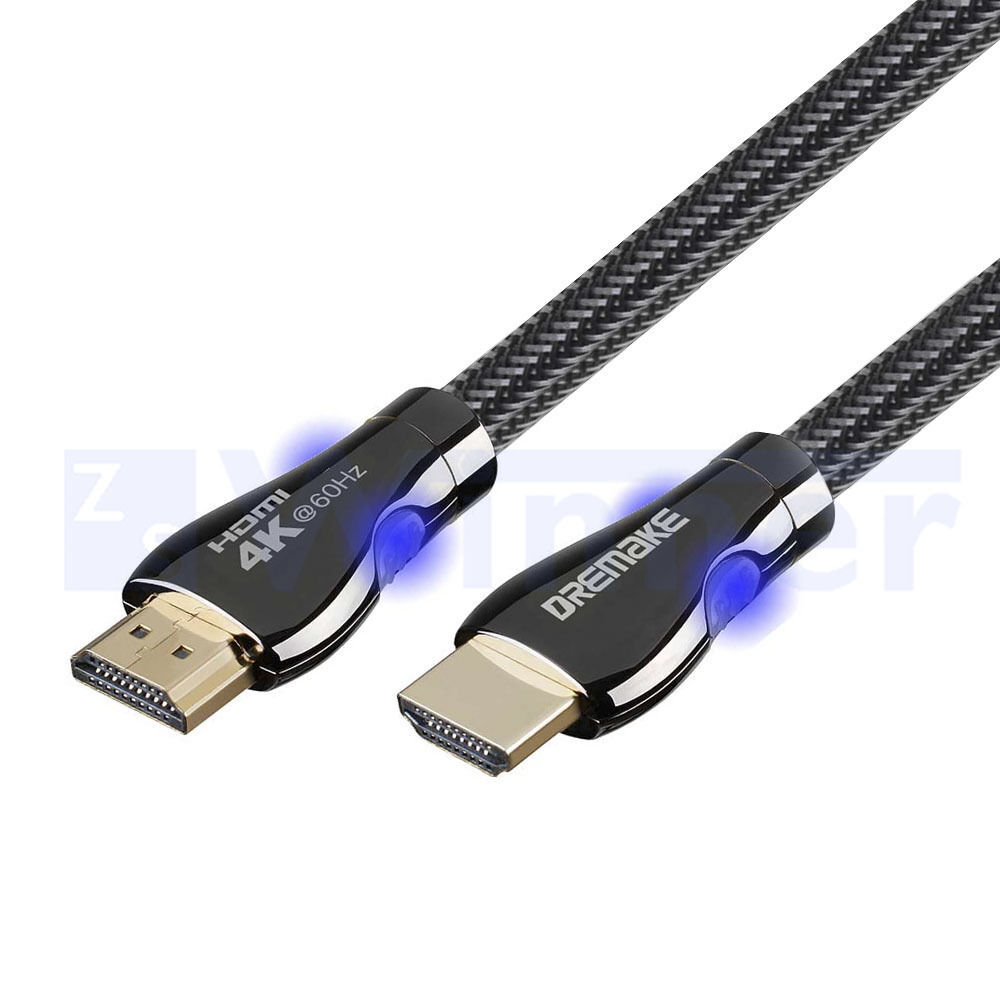

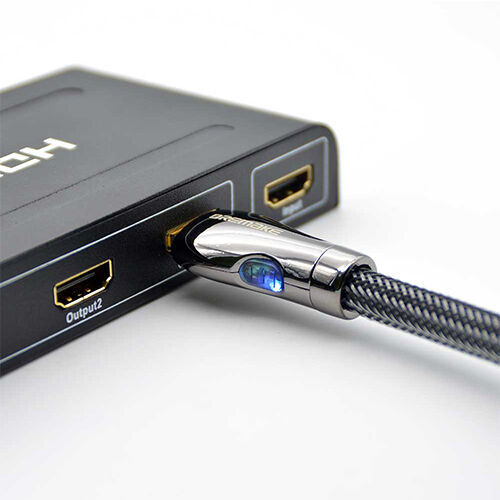

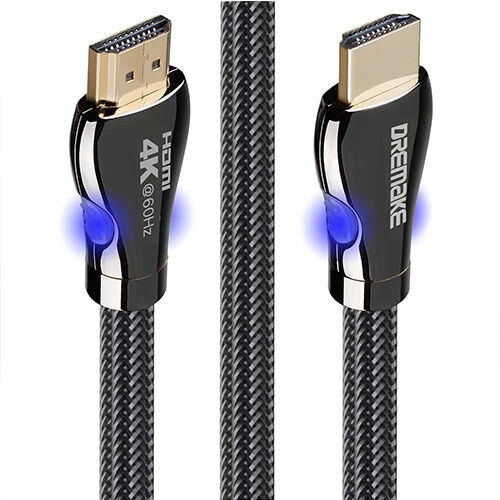

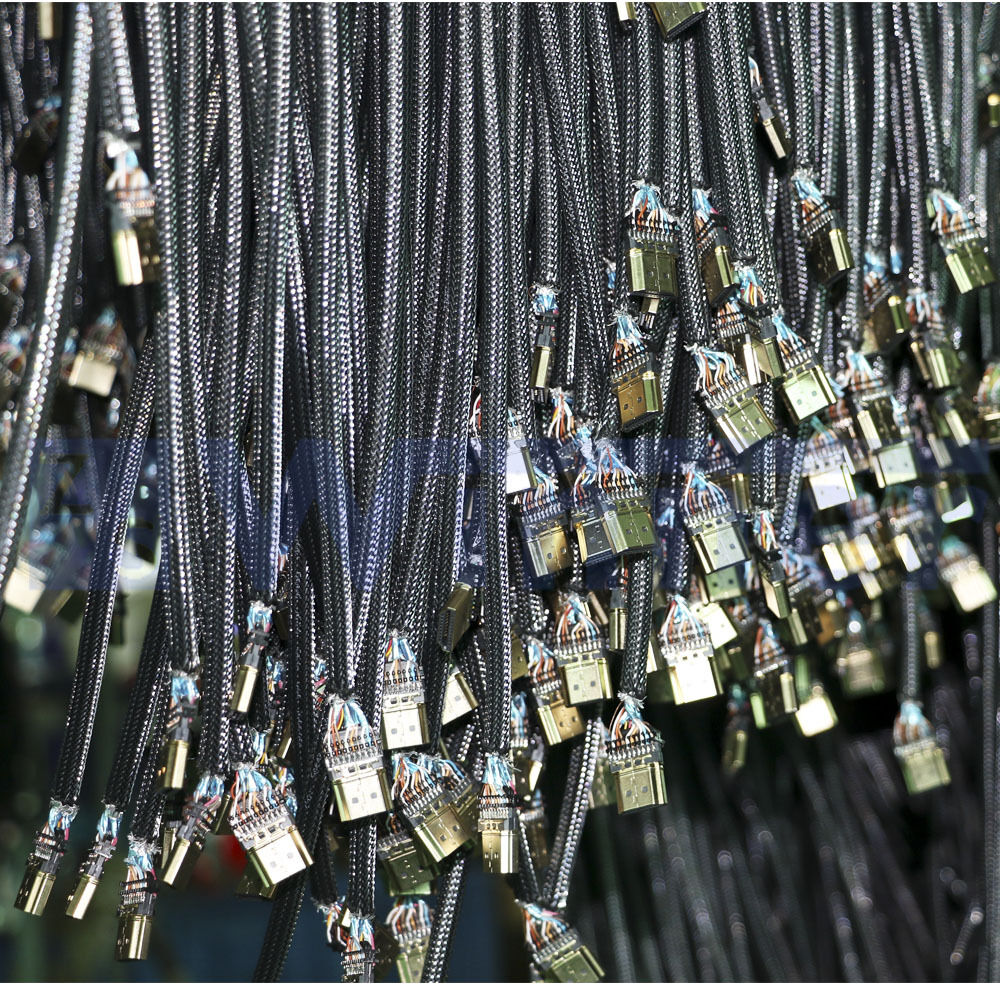

HDMI® to HDMI® Cable with LED Light Support 3D 4k Ethernet for HDTV LCD Projector Computer Wire
Specifications :
1. HDMI® 19Pin Male to HDMI® 19 Pin Male Cable

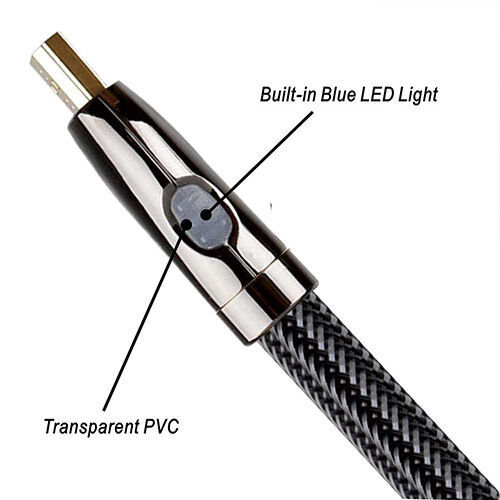

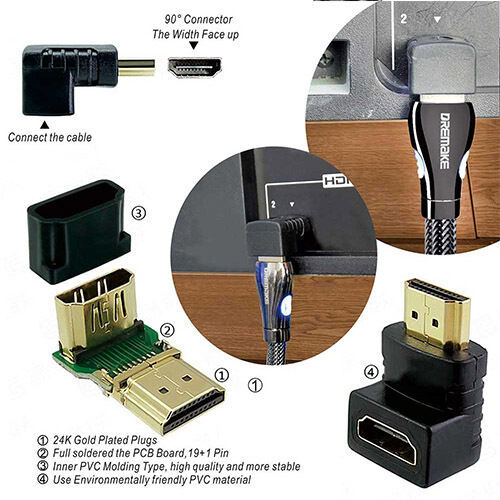

2. Connector: 24K gold plated with LED light
3. Supports all HDMI® devices
4. Supports resolution up to 2160P
5. Transmission Speed up to 10.2Gbps

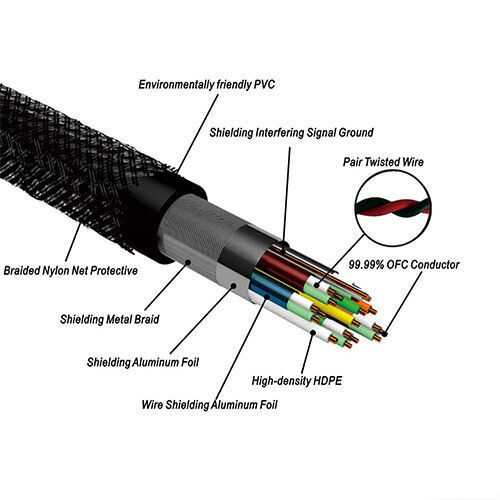

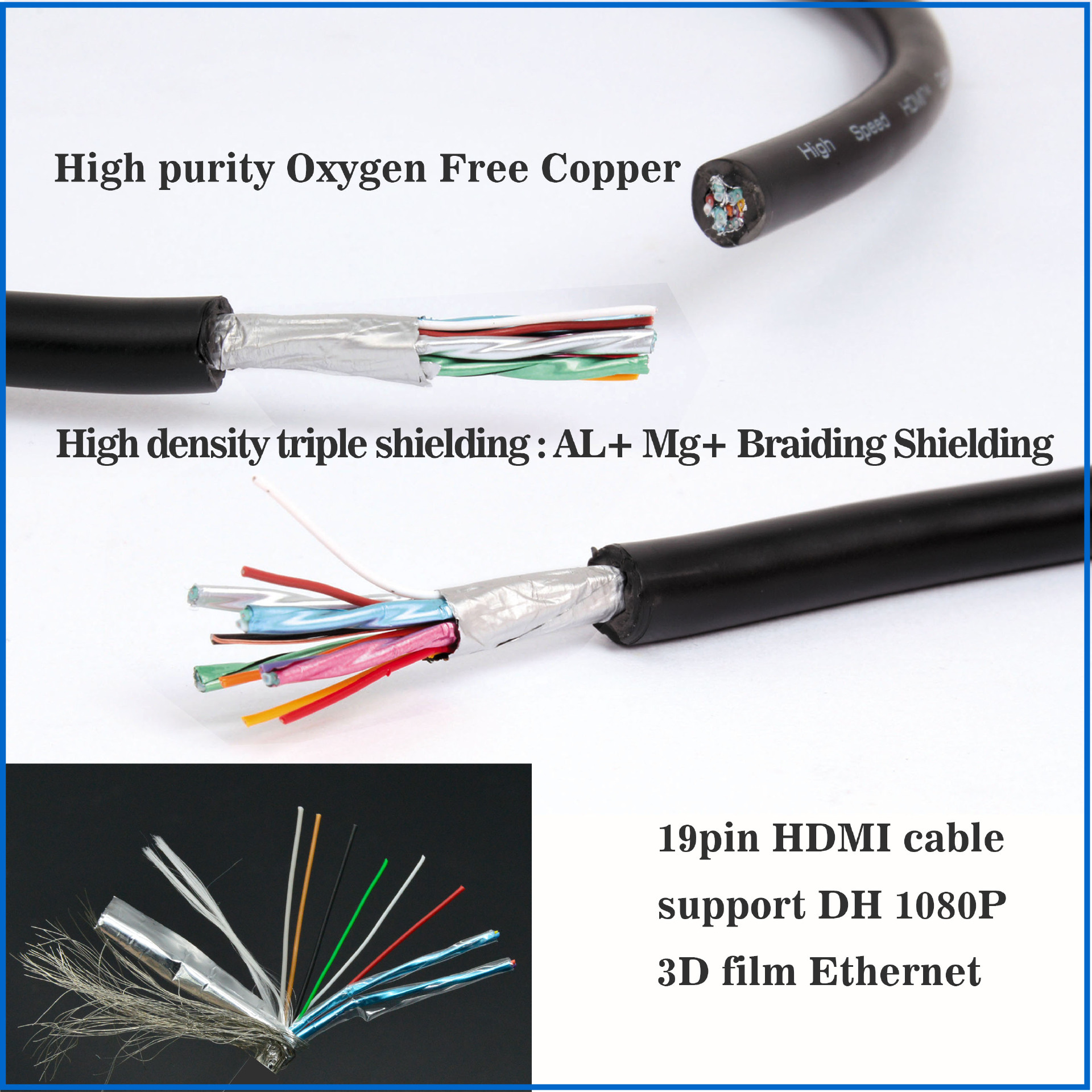

6. All conductor and the shields (braid and drain) are copper
7.Can provide quite long HDMI® cable with amplifying signal without power source
8. We have over 30 models （Molding/Copper/ABS/Zinc different type ）are available
9. HDMI® ATC certified
Supports :
1.3D video, resolution up to full HD 1920X1080P, 4K*2K
2. Audio Return Channel & Dual Stream 1080p
3. HDTVs / PS4 / Blu-Ray players / Hometheater / Video projector
4. HDMI® ethernet channel
HDMI® Applications :
1. HD-DVD, Blue-ray DVD, LCD TVs, Plasma Display
2. Game Machines: Sony Plays
3. LCD TVs, Plasma Display
4. Rear Projection Microdisplays
5. Hi-def DVD Payers
6. A/V Receivers
7. Digital Television
8. XBOX360
HDMI® Electrical Features :
1. 100% Open & Short Tests
2.Voltage / Hi-pot: DC 300v 10ms
3. Insulation Resistance: 10m ohm min
4. Contact Resistance: 3max
5. wire:30AWG*1P+D+FAM
6. Differential Impedance(Ω):100±1Ω(TDR)
7.Data transfer rate:10.2Gbps Max
8.Working Temperature: -25C-80C
Electrical :
1. 100% open and short test
2. Conductor resistance: 2 OHMS Max
3. Insulation resistance: 5 MEGOHMS Min
4. HI-POT:DC300v/0.01s
5. HDTV-DVD test: 1080p 2015 hot selling dual color HDMI® cable with audio return channel for DVD / PS3 / 3D / 1080p / Deepcolor
Note HDMI® interface size :
"HDMI® interface has three kinds: standard ports, mini-port and micro-port Due to volume restrictions, so on different devices, you have to choose different interface"
HDMI® line is not as long as possible :
"Theoretical single HDMI® cable transmission distance is 7-8 meters, but the actual use, do not need that long ,Before buying, the best measure the desired length, measurements as long as 50cm margin is enough"

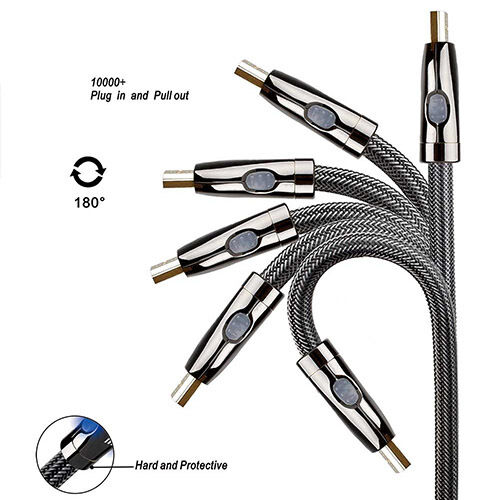

Avoid excessive bending HDMI® cable :
"During use HDMI® cable, to avoid excessive bending wire, such as regular use, there may be damage to the line winding core or shield Generally along an actuate bend, the cable will not be damaged "
