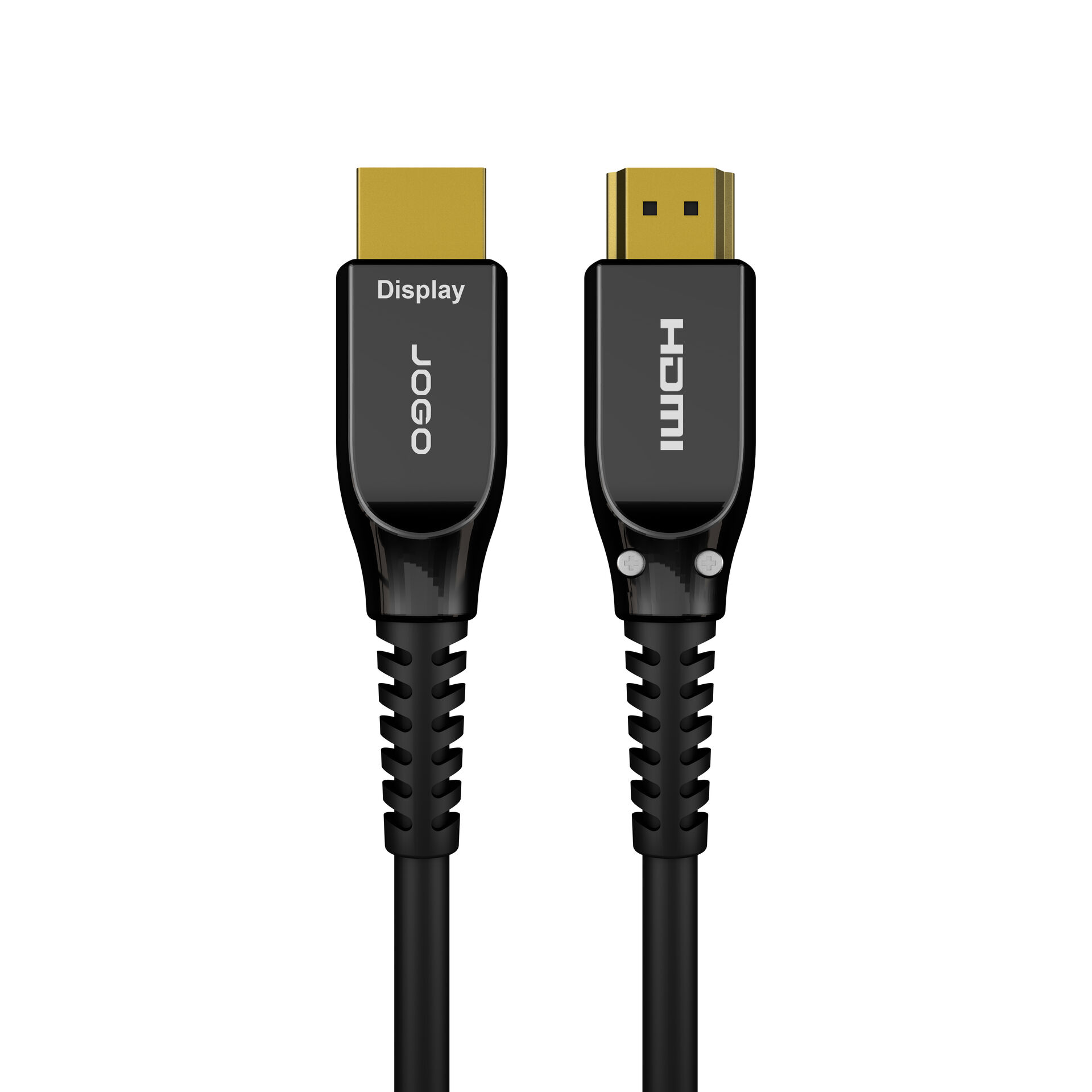

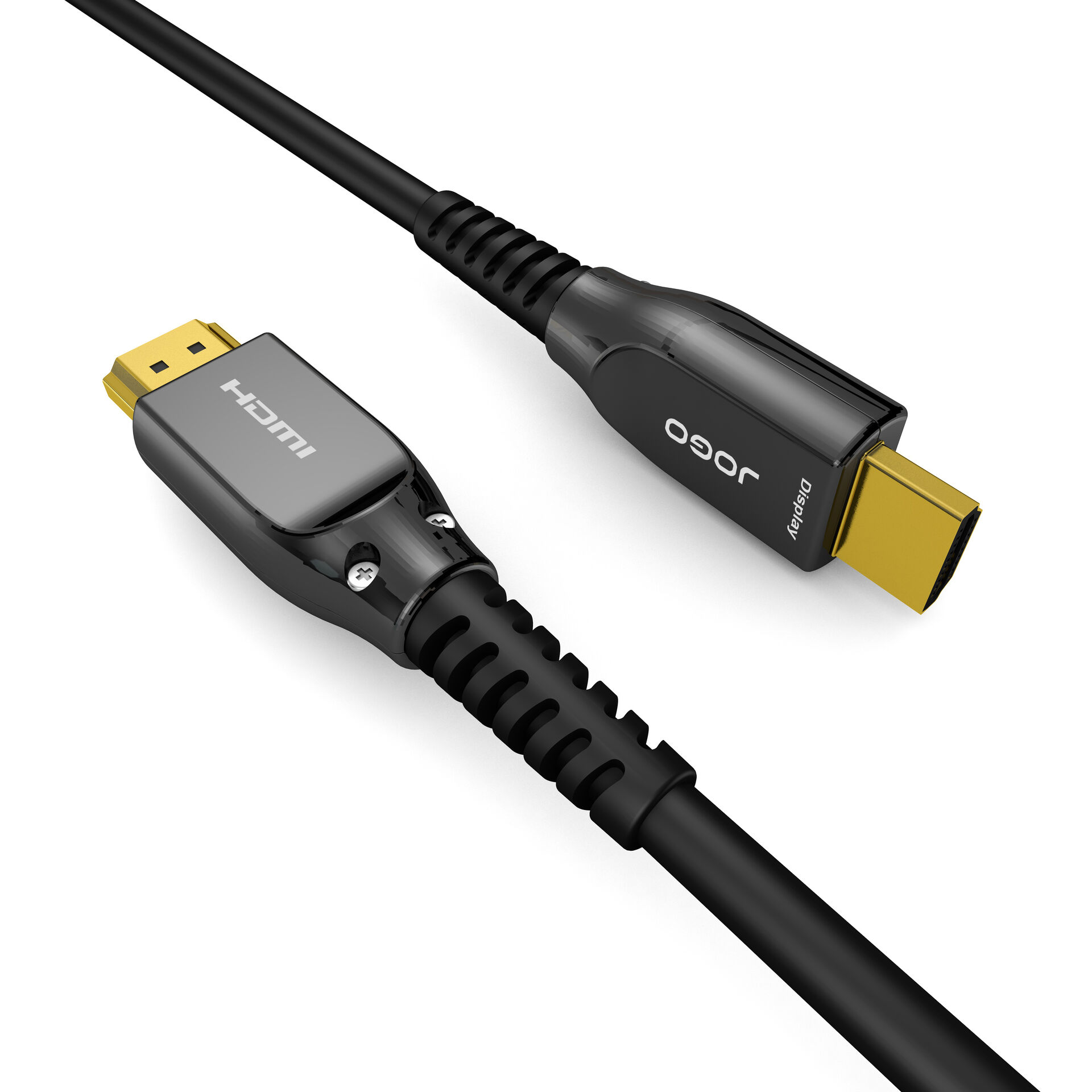

Full HD 4k Optical Hybrid HDMI Active Cable,18 Gbps 4k HDMI Type A Active Fiber Optical Cord for Home Theater Enables transmission
Send Order Request

Share:


Full HD 4k Hybrid HDMI Active Optical Cables,18 Gbps HDMI Type A AOC Active Fiber Optical Cord for Home Theater Enables transmission of High Dynamic Range (HDR) video


KEY FEATURES :

1: Up to 100M(300ft)Maximum Length.(Custom Length Available)

2: Low Power Consumption: 250mW (max). (No External Power Required)

3: Plug and Play , Compatible with HDMI 1.4V / HDMI standard

4: Support HDCP , Self-detecting function for EDID information.

5: Hybrid Cable profile , No loss of signal – delivering crystal clear digital images instantly

6: Supports computer resolutions to 1080P and 4K*2K(60P).

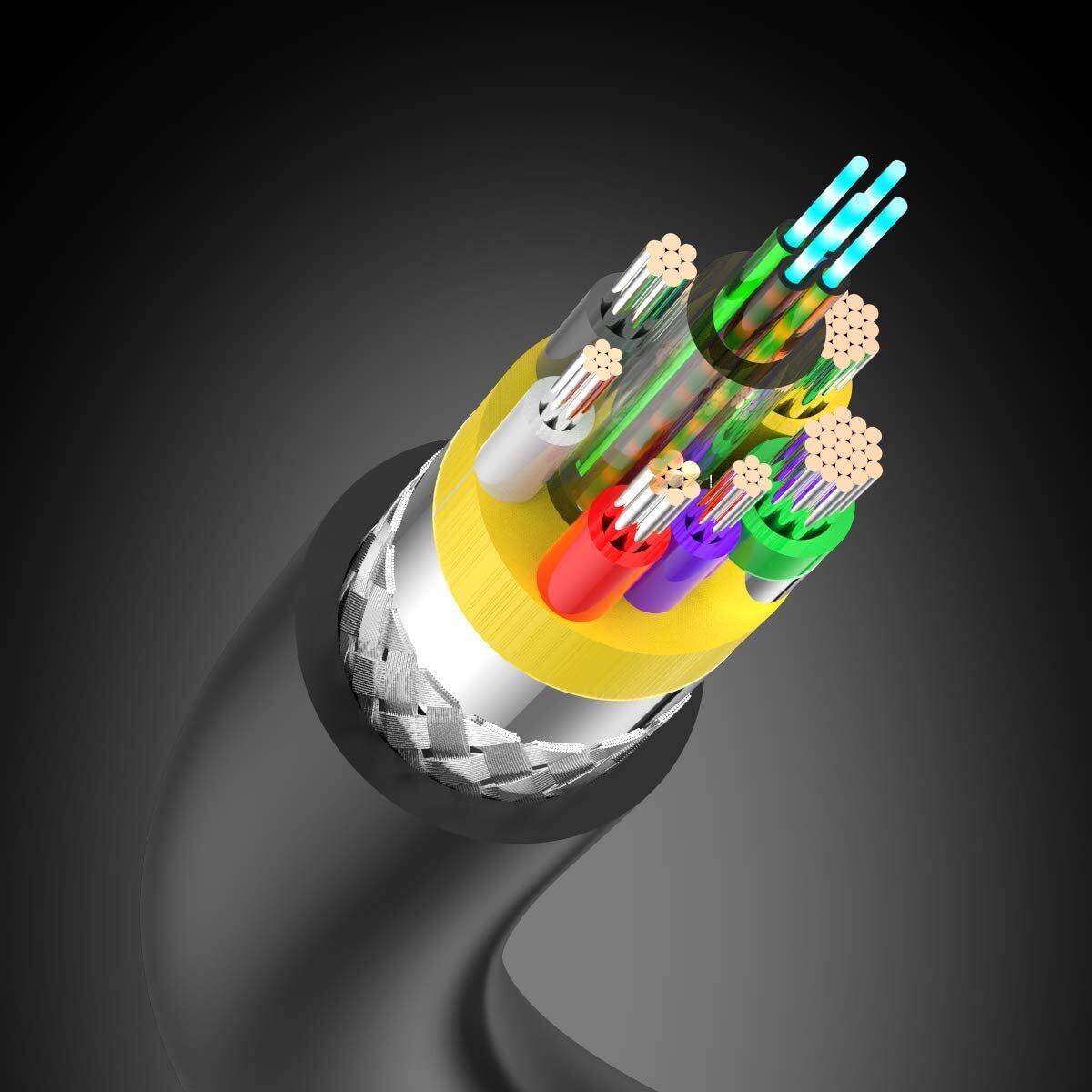

7: Hybrid optical cable with fiber and copper wire


Applications :

Digital Signage

LED signboards in streets and in stadiums

Medical Imaging Equipment

Airplane On-board Video System

Home Theater

Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer

TV Broadcast Station

Conference Room Video Equipment

Security systems

ItemDescription
UnitsTransmitter (Source)Receiver (Sink)
HDCP & DDCHDCP 2.0 Fully Support bi-directional EDID and HDCP communication
Video Bandwidth6 Gbps/x3Channel (max)+ Clock.
SupportedPC: WUXGA 1920 * 1200 up to 100 meters,
Resolution & DistanceHDTV : 480p, 720p, 1080i and 1080p deep color, 4K(60P), 3DFull HD 1920 x 1080 up to 100 meters
O/E Converter4 channel 850 mm VCSEL array4 CH GaAs PD array
Connector TypeHDMI type A
Cable TypeHybrid type with OM3 fiber and copper wire
Cable Length15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Customized length available
Cable Outer Diameter4.5mm
Jacket Outer MaterialPVC/TPU(Customized)
Cable ColorBlack or Customized
Differential Input100 ohm (typ)
Power Consumption250mW (max)
Power SupplyNon external power required
